Polymer Products
Functional Polymer Products
Advanced Polymer-Supported Reagents and Catalysts for Modern Organic Synthesis
Cheminnovatix develops functional polymeric materials that combine the performance of homogeneous reagents and catalysts with the practical advantages of heterogeneous systems.
Our polymer platform enables straightforward separation, reuse and implementation in both batch and continuous-flow processes
Polymer-Supported Palladium Catalyst
Heterogeneous palladium catalysts for synthetic transformations. Palladium immobilized on functional polymer supports enables straightforward catalyst separation and provides a platform for catalyst recovery and repeated use.
Polymer-Supported Carbodiimide
Reusable coupling reagents for carboxylic acid activation. Polymer-bound carbodiimide functionality provides an efficient heterogeneous platform for the activation of carboxylic acids while simplifying reagent removal and downstream purification.
Polymer-Supported Aminopyridine
Immobilized DMAP-type organocatalysts. Polymer-supported aminopyridine catalysts combine the catalytic activity of DMAP-type nucleophilic catalysts with the advantages of an insoluble polymeric support. Immobilization facilitates catalyst separation from the reaction mixture and provides opportunities for catalyst recovery, reuse and continuous processing.
FEATURED PRODUCTS
Polymer-Supported Palladium Catalyst
Reusable palladium catalyst on a functional bio-based polyurea support
A heterogeneous palladium catalyst immobilized on a pyridine-functionalized polyurea matrix, developed for efficient palladium retention, straightforward separation and repeated use.
TECHNICAL PARAMETERS
2.21 ± 0.17 wt.%
Pd loading
200 ± 45 µm
Particle size
4–8 nm
Pd crystallite size
PERFORMANCE
0.31 ppm*
Pd in crude
5 cycles
Reuse demonstrated
96%
Isolated yield¹
* Pd concentration measured in the crude product under the reported aminocarbonylation conditions.
¹ Isolated yield obtained in a 5 mmol preparative-scale aminocarbonylation.
SEM images of the functional polyurea support and Pd-loaded material.
SCIENTIFIC VALIDATION

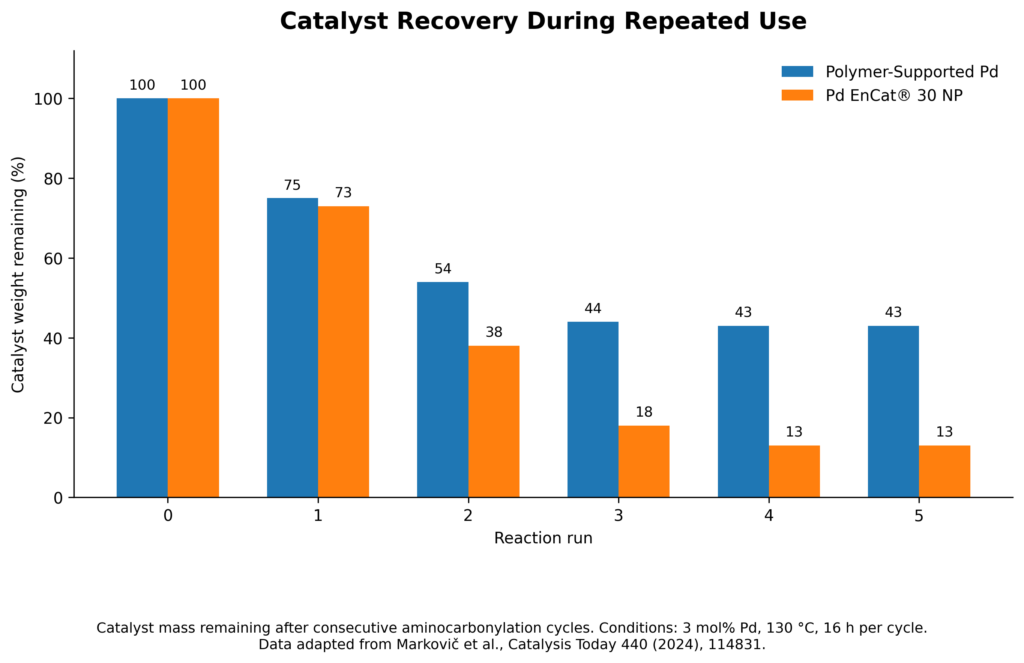

Demonstrated Stability in Repeated Use

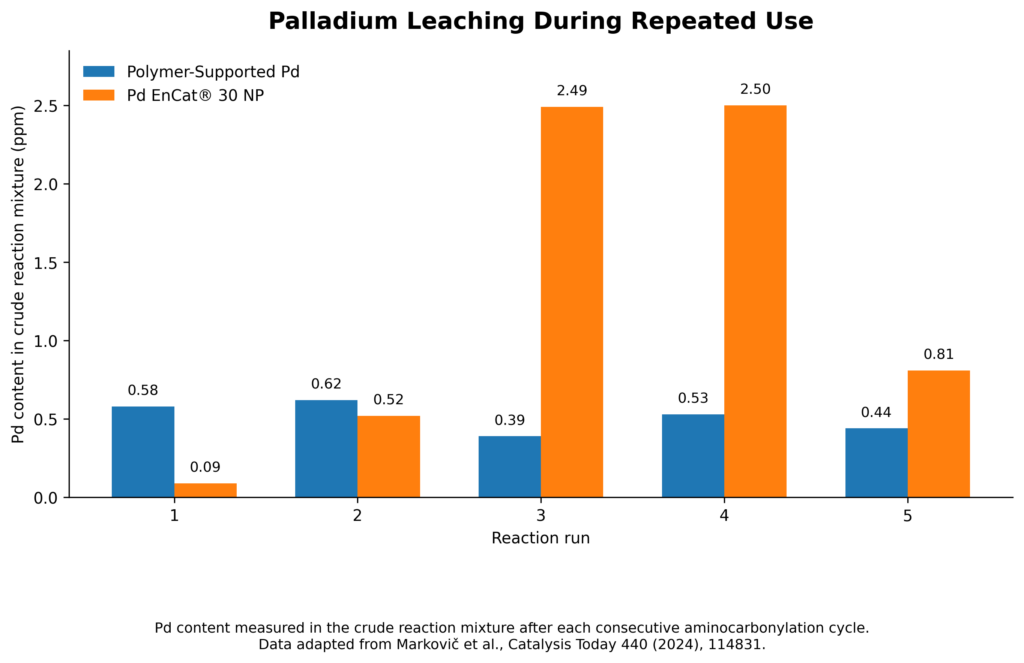

The polymer-supported palladium catalyst was evaluated over five consecutive 16-hour aminocarbonylation cycles at 130 °C and directly benchmarked against commercial Pd EnCat® 30 NP. Under the reported recycling conditions, the polymer-supported catalyst demonstrated lower palladium leaching and improved support stability compared with commercial Pd EnCat® 30 NP.
5 cycles
Repeated use
16 h
Per cycle
80 h
Total testing time
130 °C
Reaction temperature
Direct benchmark against commercial Pd EnCat® 30 NP
PEER-REVIEWED PUBLICATIONS
PART A — ACTIVITY & SCOPE
Carbonylative transformations with Pd catalysts supported on bio-degradable urea-based polymer – Part A
Catalysis Today 441 (2024), 114903
DOI: 10.1016/j.cattod.2024.114903
PART B — STABILITY & REUSE
Palladium catalysts supported on biodegradable urea-based polymers in synthesis with CO – Part B
Catalysis Today 440 (2024), 114831
DOI: 10.1016/j.cattod.2024.114831

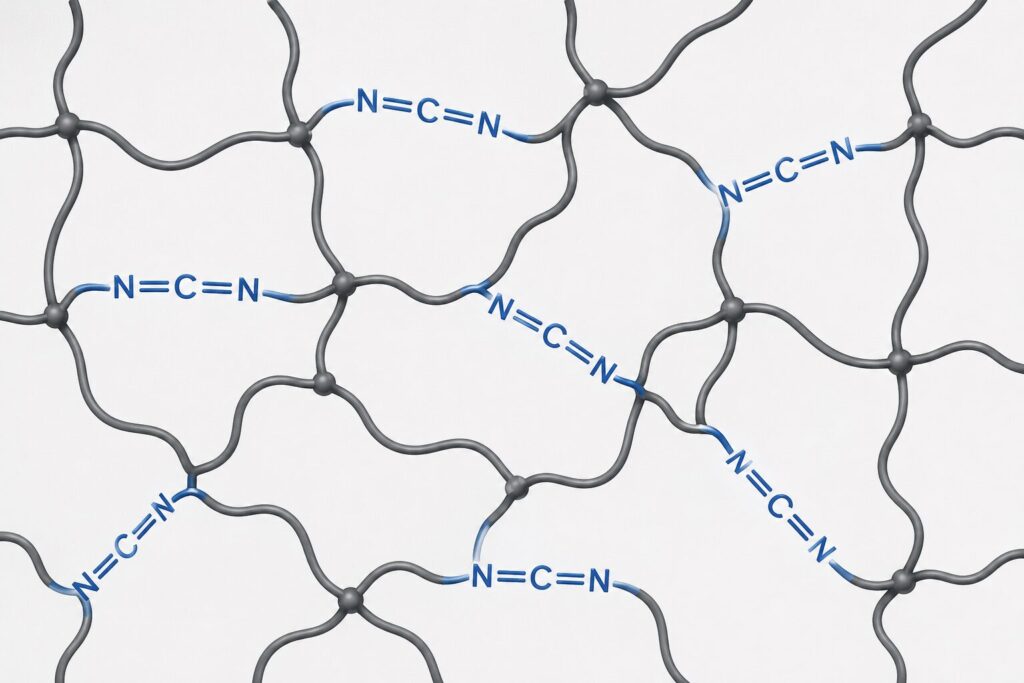

Polymer-Supported Carbodiimide
Reusable polymer-bound coupling reagent for carboxylic acid activation
A crosslinked polymer-supported carbodiimide reagent developed for efficient activation of carboxylic acids. The insoluble polymeric format enables straightforward separation from the reaction mixture and allows reagent regeneration and repeated use.
TECHNICAL PARAMETERS
1.3 mmol/g
Active CDI capacity
<250 µm
Particle size*
Insoluble
Polymeric reagent
PERFORMANCE
Esterification
Demonstrated
Amidation
Demonstrated
Lactonization
Demonstrated
Regenerable
Repeated use
Flow compatibile
Packed-bed column
Mechanochem
Demonstrated
*Product is supplied as a sieved fraction below 250 μm.
DESIGNED FOR RECOVERY AND REUSE
Reaction →
Use in batch
or flow
Filtration →
Simple separation
by filtration
Regeneration →
Reagent regeneration
under mild conditions
Reuse
Repeated use
demonstrated (3 cycles)
